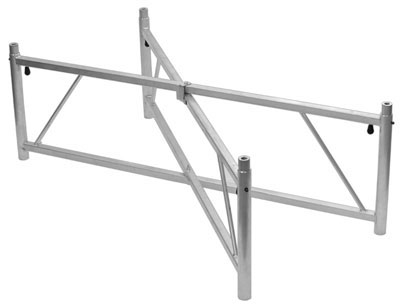

Model TFA-4835.
4' x 8' X-Frame.
3' - 5' Telescopically adjustable.

Ultrastage X-frames are easy to transport and quick to set up. No tools are required and leveling is made easy with the integrated screw-adjustment leveling feet.

Telescopic X-frames have the added advantage of height adjustment (in 2" increments). Five Telescopic X-frames sizes are available: 12" to 16", 16" to 24", 24" to 36", 3ft to 5ft, and 5ft to 7ft.

Precision milled from solid aluminum bar, UltraStage X-frame leveling feet are the strongest on the market. Optionally available with Delrin inserts for added protection when used on hardwood flooring.
	Leveling Foot	Leveling Foot with Delrin® Pad

KAD Fabrication

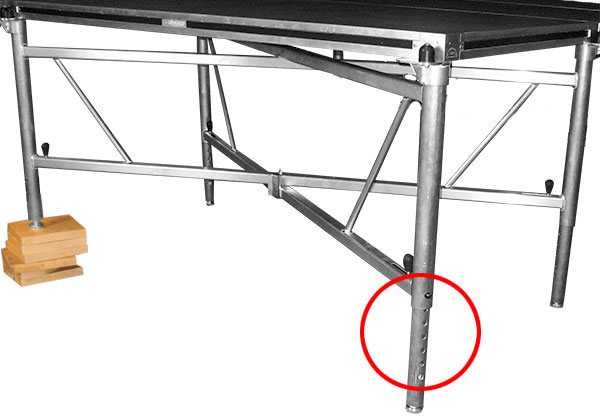

UltraStage X-Frames can also be inverted so the telescopic inserts can be telescoped DOWN to allow for traversing stairs or other steep grades without having to resort to wood blocking or shimming.

HOW TO INVERT AN X-FRAME

KAD Fabrication

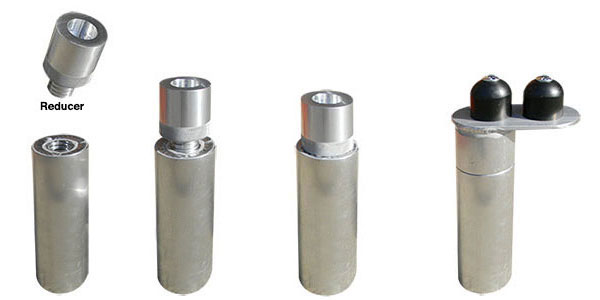

Inverted X-Frame Leg Bottom	Reducer threads into X-frame leg.	Reducer fully secured in place.	LP-2 Locator Plate fitted in place.
The above images show the bottom of an X-Frame leg with the Leveling Foot removed and REDUCER positioned then screwed into place. The Reducer's function is to make the diameter of the lower leg the same as that of the upper Telescopic Insert so that regular Locator Plates can be used as usual.
