Staging → Rolling Risers

Video Assembly Demonstration

This video offers a visual representation of a typical KAD Fabrications rolling riser assembly procedure. While helpful in learning the assembly procedure for a KAD rolling riser, please review the Staging Assembly Manual for more details on standard stage setups.

Staging Assembly Manual

X-Frame leveling feet unscrew to allow specialized casters to be screw into place. Two types of casters are made to support either a single X-frame leg or two X-frame legs side-by-side. Caster Locks lock both the swivel and rotation of the caster.

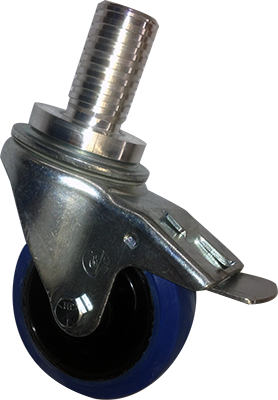

Single Frame Leg Wheel Model: FW-1	Double Frame Leg Wheel Model: FW-2

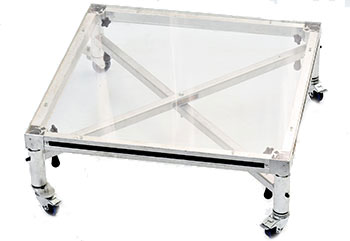

This 4x4 rolling riser with Plexiglas top shows a most basic rolling riser. Telescopic X-frame with wheels.
